Fuel Line 2

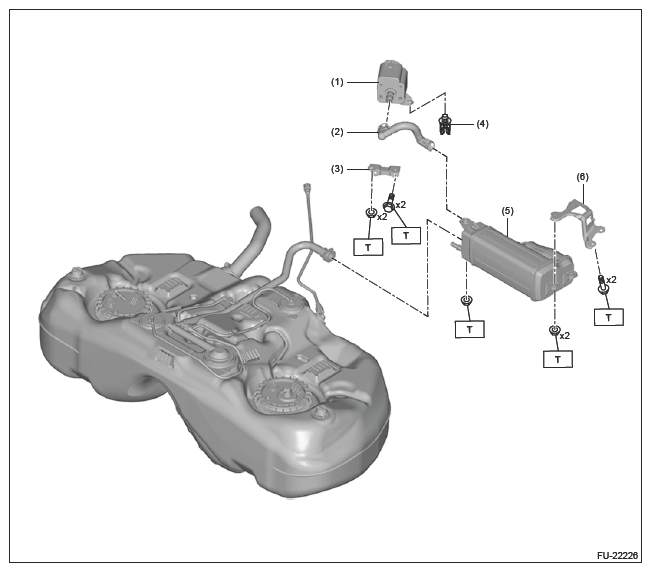

Fig 1: Fuel Line 2 Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Leak check valve ASSY
(2)	Drain tube
(3)	Leak check valve ASSY bracket
(4)	Tube clamp
(5)	Canister
(6)	Canister bracket

Tightening torque: N.m (kgf-m, ft-lb)

T: 8 (0.8, 5.9)
