Fuel Tank: Disassembly

  1. Remove the hoses from the fuel tank. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 1 .
  2. Remove the fuel sub delivery tube. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL DELIVERY AND EVAPORATION LINES>REMOVAL .

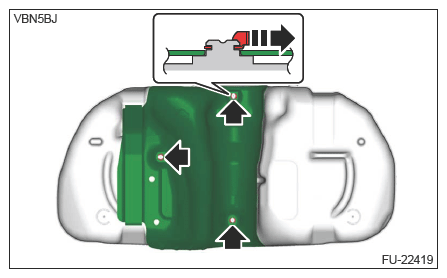

  3. Remove the fuel tank cover from the fuel tank.
G14601094Courtesy of SUBARU OF AMERICA, INC.
