Engine Control Module (ECM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

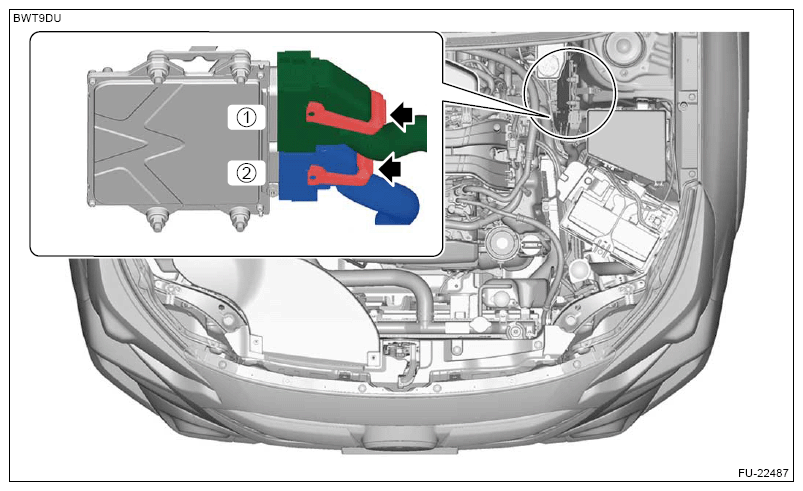

  2. Disconnect the connector in numerical order as shown in the figure.
    CAUTION: Make sure that the lock is released before moving the lever in order to avoid damaging the connector.

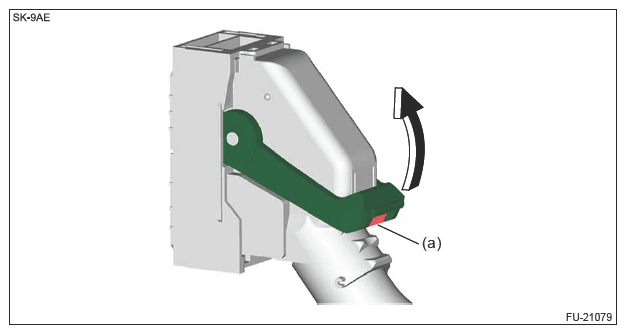

    NOTE: To disconnect the connector, press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.
    G13223989Courtesy of SUBARU OF AMERICA, INC.
    G16382944Courtesy of SUBARU OF AMERICA, INC.

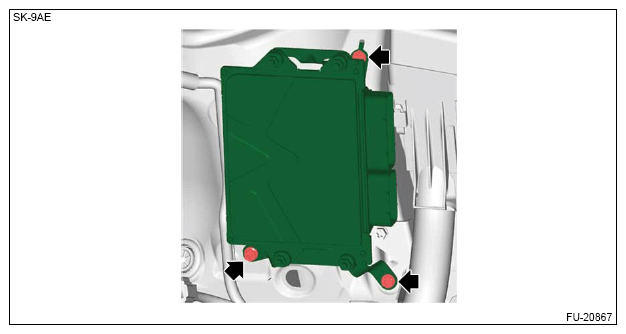

  3. Remove the ECM from vehicle.
    G13223991Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the ECM bracket.
