Brake Test
- Keep the front or rear wheels on the ground during measurement.

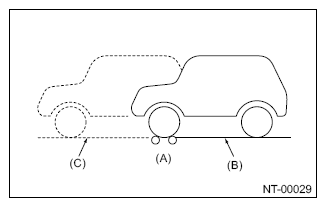

(A) Brake tester (B) Position for measuring front wheel (C) Position for measuring rear wheel - When the brake dragging force is large
- Check the dragging of brake pad.
Judgment standards:
Braking force Rear wheel total 10% or more of load on front or rear wheels Difference between right and left wheels 8% or less of load on front or rear wheels Grand total 50% or more of vehicle weight at the time of test - When measurement is difficult to carry out because both of front wheels are locked, brake force measurement in this condition conforms to standard grand total.
