Speedometer Test

  1. Rear wheel free roller system
    1. Set the free roller on the floor of rear wheel side securely according to the wheel base and rear tread of the vehicle.
    2. Let the vehicle ride on the tester and free roller gently.
      CAUTION: Fix the vehicle using a pulling metal (chain or wire).

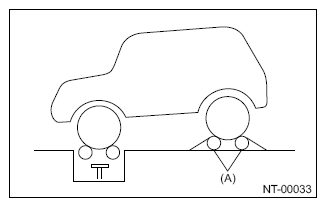

      G16340250Courtesy of SUBARU OF AMERICA, INC.
      (A) Free roller
    3. Set the speedometer tester.
    4. Conduct the speedometer test work.
      CAUTION:
      • Do not operate the steering wheel.
      • Avoid abrupt operations of the acceleration pedal and brake pedal.
      • Perform the measurement while driving the vehicle at 50 km/h (31 MPH) or less and complete within one minute.
      • Be sure to turn OFF the pre-collision brake function.
  2. Rear wheel jack-up system
    1. Set the vehicle on speedometer tester.
      CAUTION: Fix the vehicle using a pulling metal (chain or wire).
    2. Jack up the rear wheels and set the rigid racks to the rear side jack up point.

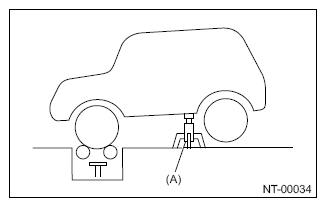

      G16340251Courtesy of SUBARU OF AMERICA, INC.
      (A) Rigid rack
    3. Conduct the speedometer test work.
      CAUTION:
      • Do not operate the steering wheel.
      • Avoid abrupt operations of the acceleration pedal and brake pedal.
      • Perform the measurement while driving the vehicle at 50 km/h (31 MPH) or less and complete within one minute.
      • Be sure to turn OFF the pre-collision brake function.
