Accelerator Stopper

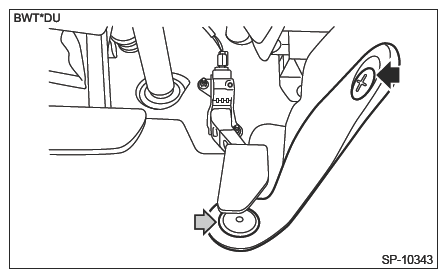

  1. Remove the clip and accelerator stopper, and then remove the accelerator plate.
NOTE: Pulling out the accelerator stopper may damage the inside. Remove it by rotating it counterclockwise.
G16383868Courtesy of SUBARU OF AMERICA, INC.
