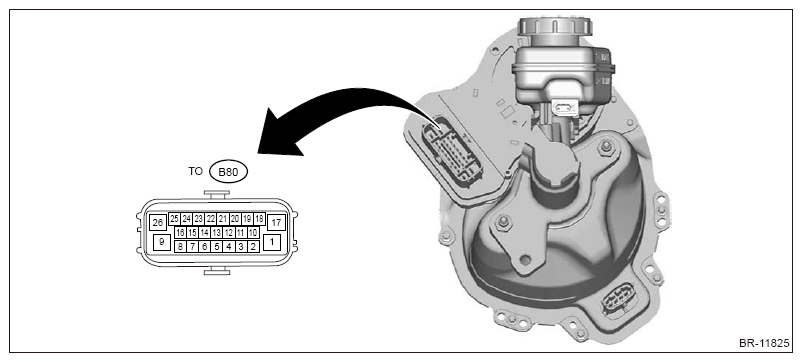

Electrical Specification
| Terminal No. | Contents | Measuring condition | Standard |
|---|---|---|---|
| (B80) No. 1 | Main power supply | Always | Battery voltage |
| (B80) No. 2 | Booster stroke sensor power supply | Always | Battery voltage |
| (B80) No. 3 | - | - | - |
| (B80) No. 4 | - | - | - |
| (B80) No. 5 | - | - | - |
| (B80) No. 6 | - | - | - |
| (B80) No. 7 | - | - | - |
| (B80) No. 8 | Booster stroke sensor GND | - | - |
| (B80) No. 9 | GND | - | - |
| (B80) No. 10 | Chassis CAN_L | - | - |
| (B80) No. 11 | - | - | - |
| (B80) No. 12 | - | - | - |
| (B80) No. 13 | - | - | - |
| (B80) No. 14 | - | - | - |
| (B80) No. 15 | - | - | - |
| (B80) No. 16 | Power unit 1 CAN_L | - | - |
| (B80) No. 17 | - | - | - |
| (B80) No. 18 | Chassis CAN_H | - | - |
| (B80) No. 19 | - | - | - |
| (B80) No. 20 | Ignition power supply | Ignition switch ON | Ignition power supply |
| (B80) No. 21 | Brake light switch | When the brake pedal is operated | Brake ON: Battery voltage Brake OFF: Ground |
| (B80) No. 22 | Booster stroke sensor signal 1 | - | - |
| (B80) No. 23 | Booster stroke sensor signal 2 | - | - |
| (B80) No. 24 | - | - | - |
| (B80) No. 25 | Power unit 1 CAN_H | - | - |
| (B80) No. 26 | - | - | - |
