Data Monitor: List

Item Contents Standard Note
Power Supply Voltage Power supply voltage 0 - 20.95 V -
Courtesy Switch Courtesy switch status Close
Open		 -
One's Seat Switch Status of switch at passenger's own seat OFF
DOWN
UP
UP/DOWN
AUTO
AUTO DOWN
AUTO UP
UP/DOWN/AUTO		 -
Remote switch Remote switch status OFF
DOWN
UP
UP/DOWN
AUTO
AUTO DOWN
AUTO UP
UP/DOWN/AUTO		 -
Window Lock Switch Signal Window lock switch status Unlock
Lock		 -
Remote Control Key Signal Remote control key signal OFF
DOWN
UP		 -
Operation Enable Signal Operation permission signal OFF
ON		 -
Open Position Pulse Count Full open position pulse count -32767 - 32767 Edge -
Current Position Pulse Count Current position pulse count -32767 - 32767 Edge -
Motor Control Mode Motor control status Stop
One's Seat Manual Down
One's Seat Manual Up
One's Seat Auto Down
One's Seat Auto Up
Remote Manual Down
Remote Manual Up
Remote Auto Down
Remote Auto Up
Remote Key Interlocking
Down
Remote Key Interlocking
Up
Reversal Down
Active Test Down
Active Test Up		 -
ECU Control Mode ECM control status Uninitialized 1
Undefined
Uninitialized 2
Initialized		 -
With/Without Forget Closing Window History wherein window position is within a sensing area when key off timer is prohibited no support support -
Record Forget Closing Window Latest Number of times key off timer has been prohibited since key off timer prohibition was detected most recently when the window's position is not in the full close state 0 - 255 Time -
Record Forget Closing Window 1 Number of times key off timer has been prohibited since key off timer prohibition was detected second last time when the window's position is not in the full close state 0 - 255 Time -
Record Forget Closing Window 2 Number of times key off timer has been prohibited since key off timer prohibition was detected the third last time when the window's position is not in the full close state 0 - 255 Time -
Record Forget Closing Window 3 Number of times key off timer has been prohibited since key off timer prohibition was detected the fourth last time when the window's position is not in the full close state 0 - 255 Time -
Window Position Status Window position information Indefinite
Fully Open
Fully Closed
Other		 -
Reason Down Glass Latest Latest DOWN factor information record (Auto, Reverse, etc.) Default
One's Seat Manual Down
One's Seat Auto Down
Remote Manual Down
Remote Auto Down
Remote Key Interlocking
Down
Reversal Down
Active Test Down		 -
Reason Down Glass 1 Second latest DOWN factor information record (Auto, Reverse, etc.) Default
One's Seat Manual Down
One's Seat Auto Down
Remote Manual Down
Remote Auto Down
Remote Key Interlocking
Down
Reversal Down
Active Test Down		 -
Position when Reversed Glass Latest Window position of the latest reverse operation No Reverse
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 1
Reverse Parameter Mask Latest Reverse parameters 1 of the latest reverse operation First Motion Mask within Two of the Interval
First Motion Mask without Two of the Interval		 -
Reverse Parameter Speed Latest Reverse parameters 2 of the latest reverse operation Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Reversed Glass 1 Window position of the second latest reverse operation No Reverse
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 1
Reverse Parameter Mask 1 Reverse parameters 1 of the second latest reverse operation First Motion Mask within Two of the Interval
First Motion Mask without Two of the Interval		 -
Reverse Parameter Speed 1 Reverse parameters 2 of the second latest reverse operation Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Reversed Glass 2 Window position of the third latest reverse operation No Reverse
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 1
Reverse Parameter Mask 2 Reverse parameters 1 of the third latest reverse operation First Motion Mask within Two of the Interval
First Motion Mask without Two of the Interval		 -
Reverse Parameter Speed 2 Reverse parameters 2 of the third latest reverse operation Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Reversed Glass 3 Window position of the fourth latest reverse operation No Reverse
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 1
Reverse Parameter Mask 3 Reverse parameters 1 of the fourth latest reverse operation First Motion Mask within
Two of the Interval
First Motion Mask without
Two of the Interval		 -
Reverse Parameter Speed 3 Reverse parameters 2 of the fourth latest reverse operation Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Stop Glass Latest Window position of the latest window stop operation due to drawing foreign matters Not Involve
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 2
Stop Parameter Mask Latest Parameters 1 of the latest window stop operation due to drawing foreign matters First Motion Mask within
Two of the Interval
First Motion Mask without
Two of the Interval		 -
Stop Parameter
Speed Latest		 Parameters 2 of the latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Stop Glass 1 Window position of the second latest window stop operation due to drawing foreign matters Not Involve
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 2
Stop Parameter Mask 1 Parameters 1 of the second latest window stop operation due to drawing foreign matters First Motion Mask within
Two of the Interval
First Motion Mask without
Two of the Interval		 -
Stop Parameter Speed 1 Parameters 2 of the second latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Stop Glass 2 Window position of the third latest window stop operation due to drawing foreign matters Not Involve
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 2
Stop Parameter Mask 2 Parameters 1 of the third latest window stop operation due to drawing foreign matters First Motion Mask within
Two of the Interval
First Motion Mask without
Two of the Interval		 -
Stop Parameter Speed 2 Parameters 2 of the third latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
Position when Stop Glass 3 Window position of the fourth latest window stop operation due to drawing foreign matters Not Involve
Area 5
Area 4
Area 3
Area 2
Area 1		 Note 2
Stop Parameter Mask 3 Parameters 1 of the fourth latest window stop operation due to drawing foreign matters First Motion Mask within
Two of the Interval
First Motion Mask without
Two of the Interval		 -
Stop Parameter Speed 3 Parameters 2 of the fourth latest window stop operation due to drawing foreign matters Less than Vehicle Speed 5km/h
More than Vehicle Speed 5km/h		 -
NOTE:

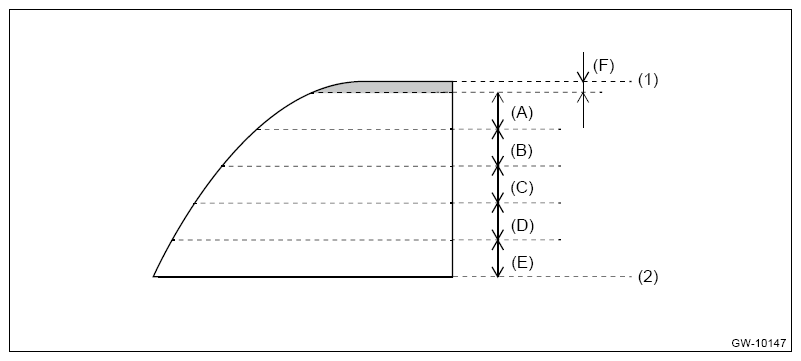

  1. Definition of window position when it reverses
    G16352749Courtesy of SUBARU OF AMERICA, INC.
    (1) Top dead position
    (2) Bottom dead position
    (A) Area 1 Area 1 - Area 5 are equal
    (B) Area 2
    (C) Area 3
    (D) Area 4
    (E) Area 5
    (F) Non-sensing areas

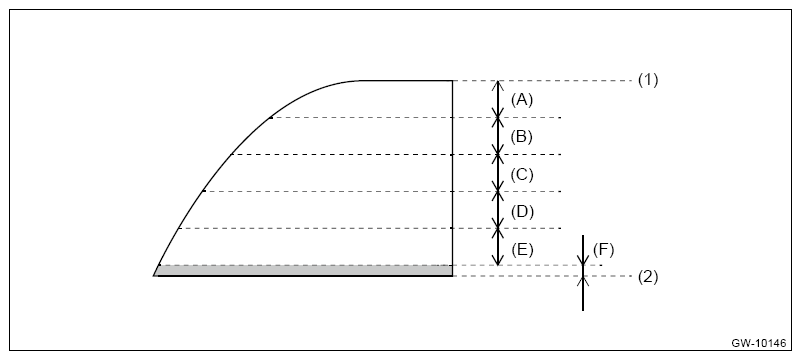

  2. Definition of window position when it stops due to drawing foreign matters
G16352750Courtesy of SUBARU OF AMERICA, INC.
(1) Top dead position
(2) Bottom dead position
(A) Area 1 Area 1 - Area 5 are equal
(B) Area 2
(C) Area 3
(D) Area 4
(E) Area 5
(F) Non-sensing areas
Item Contents Standard Note
Drivers Seat Auto SW State Driver's side AUTO SW status ON
OFF		 -
Passenger Seat Auto SW State Passenger's side AUTO SW status ON
OFF		 -
Passenger Seat Manual Up SW State Passenger's side MANUAL UP SW status ON
OFF		 -
Drivers Seat Auto SW Present ON Trouble Driver's side AUTO SW current ON malfunction Detect
Not Detect		 -
Passenger Seat Auto SW Present ON Trouble Passenger's side AUTO SW current ON malfunction Detect
Not Detect		 -
Passenger Seat Manual Up SW Present ON Trouble Passenger's side MANUAL UP SW current ON malfunction Detect
Not Detect		 -
Passenger Seat Manual Down SW State Passenger's side MANUAL DOWN SW status ON
OFF		 -
Passenger Seat Manual Down SW Present ON Trouble Passenger's side MANUAL DOWN SW current ON malfunction Detect
Not Detect		 -
Right 2nd Seat Auto SW State Rear right seat AUTO SW status ON
OFF		 -
Right 2nd Seat Auto SW Present ON Trouble Rear right seat AUTO SW current ON malfunction Detect
Not Detect		 -
Right 2nd Seat Manual Up SW State Rear right seat MANUAL UP SW status ON
OFF		 -
Right 2nd Seat Manual Up SW Present ON Trouble Rear right seat MANUAL UP SW current ON malfunction Detect
Not Detect		 -
Right 2nd Seat Manual Down SW State Rear right seat MANUAL DOWN SW status ON
OFF		 -
Right 2nd Seat Manual Down SW Present ON Trouble Rear right seat MANUAL DOWN SW current ON malfunction Detect
Not Detect		 -
Left 2nd Seat Auto SW State Rear left seat AUTO SW status ON
OFF		 -
Left 2nd Seat Auto SW Present ON Trouble Rear left seat AUTO SW current ON malfunction Detect
Not Detect		 -
Left 2nd Seat Manual Up SW State Rear left seat MANUAL UP SW status ON
OFF		 -
Left 2nd Seat Manual Up SW Present ON Trouble Rear left seat MANUAL UP SW current ON malfunction Detect
Not Detect		 -
Left 2nd Seat Manual Down SW State Rear left seat MANUAL DOWN SW status ON
OFF		 -
Left 2nd Seat Manual Down SW Present ON Trouble
 		 Rear left seat MANUAL DOWN SW current ON malfunction Detect
Not Detect		 -
Window Lock Switch State Window lock switch status ON
OFF		 -
