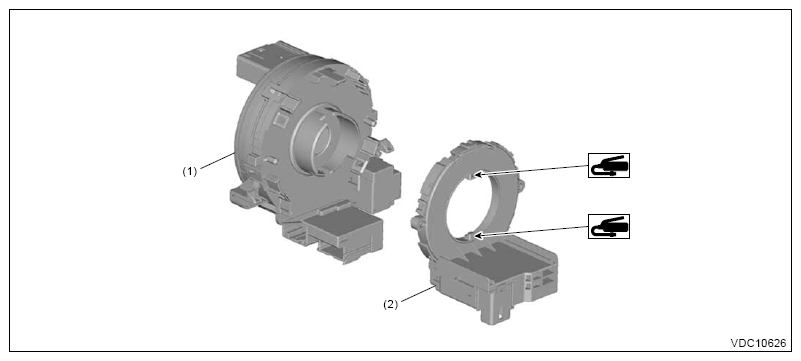

Steering Angle Sensor
Courtesy of SUBARU OF AMERICA, INC.
(1)
Steering roll connector
(2)
Sensor ASSY VDC steering
Courtesy of SUBARU OF AMERICA, INC.
