Components With Torque Specifications

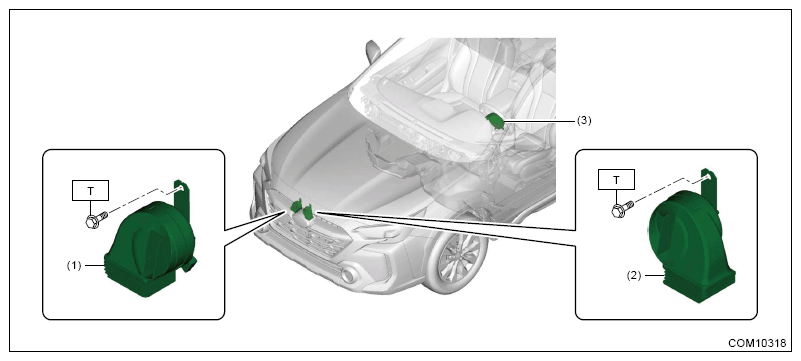

G16386072Courtesy of SUBARU OF AMERICA, INC.
(1) Horn ASSY Hi
(2) Horn ASSY Lo
(3) Horn switch (driver's airbag module)

Tightening torque: N.M (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
