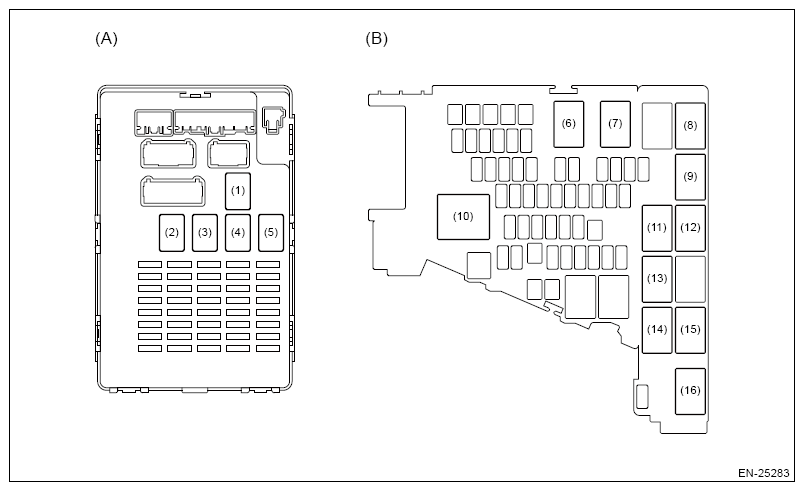

Fuse And Relay
 Courtesy of SUBARU OF AMERICA, INC.
|
| (A) |
F/B |
| (B) |
M/B |
| (1) |
IG 1 relay |
| (2) |
IG 2 relay |
| (3) |
- |
| (4) |
- |
| (5) |
- |
| (6) |
- |
| (7) |
MB-IG relay |
| (8) |
Fuel pump relay |
| (9) |
- |
| (10) |
Main relay |
| (11) |
Main fan relay 1 |
| (12) |
Sub fan relay |
| (13) |
- |
| (14) |
Starter relay |
| (15) |
Starter cut relay |
| (16) |
Main fan relay 2 |
NOTE:
Only shows parts required for engine diagnosis.
