Lift And Jack

When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.

• SUPPORT LOCATIONS

Courtesy of SUBARU OF AMERICA, INC.

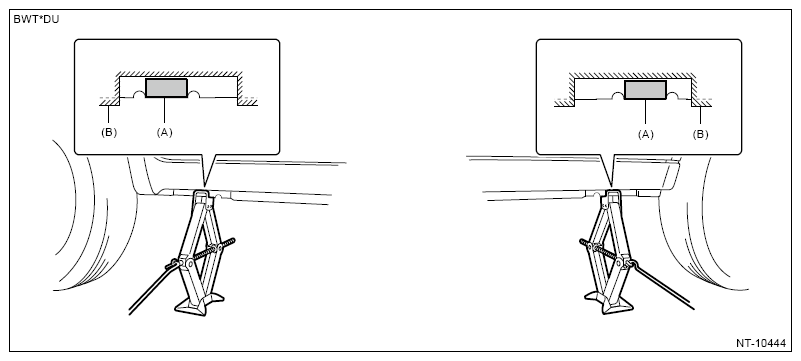

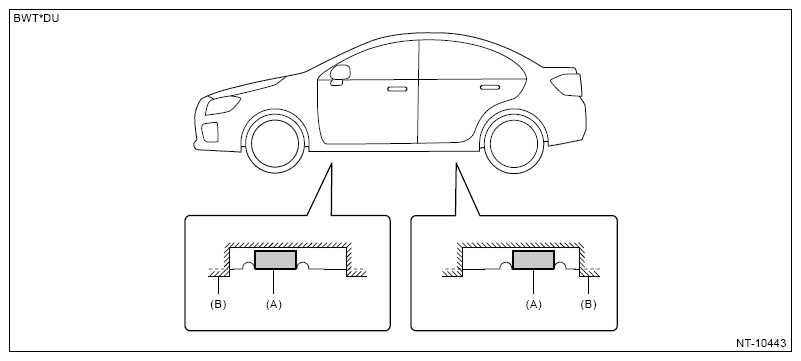

• PANTOGRAPH JACK

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	Jack-up point
  (B)	Side spoiler or side garnish

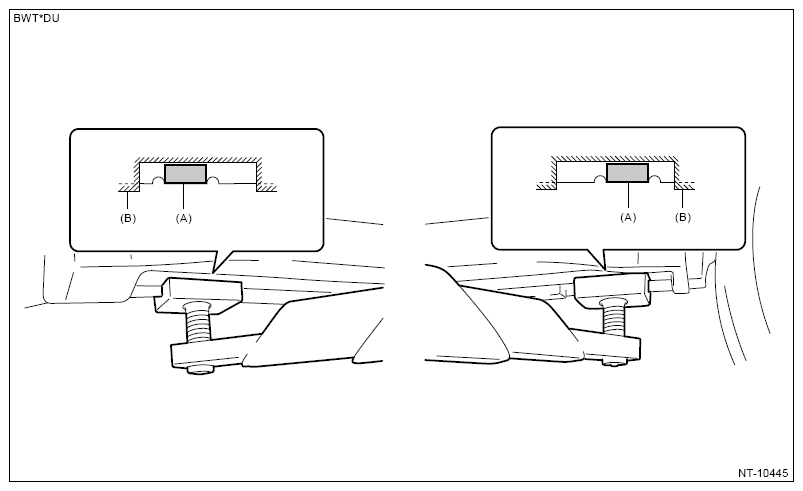

• LIFT
  CAUTION: For models with side spoiler or side garnish, use a spacer or an attachment to lift up the vehicle securely at jack up point without the side spoiler or side garnish contacting the lift.

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	Jack-up point
  (B)	Side spoiler or side garnish

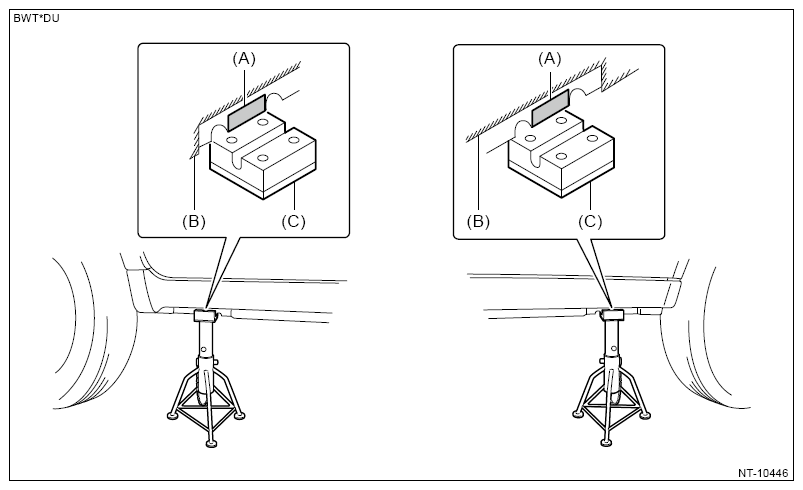

• RIGID RACK

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	Jack-up point
  (B)	Side spoiler or side garnish
  (C)	Attachment

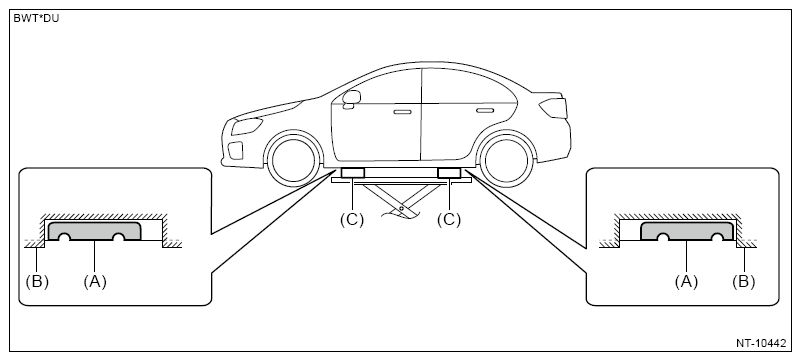

• PLATE LIFT

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	Jack-up point
  (B)	Side spoiler or side garnish
  (C)	Attachment

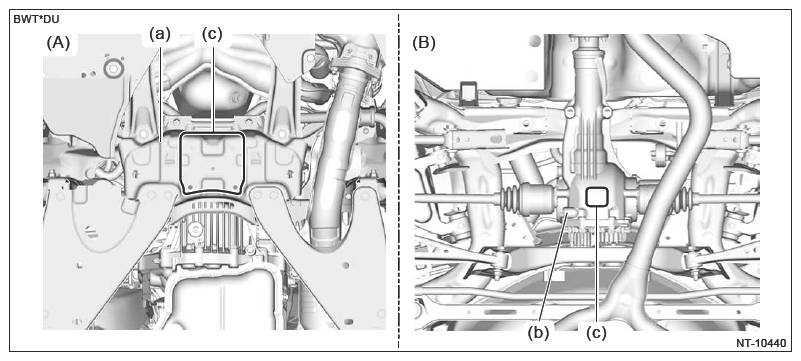

• JACK-UP POINT (WHEN USING A GARAGE JACK)
  CAUTION: If jacking up the front side of the vehicle, make sure that the jack is attached at the center of the crossmember support front, not at the sides.

  Courtesy of SUBARU OF AMERICA, INC.

  (A)	Front
  (B)	Rear
  (a)	Crossmember support front
  (b)	Rear differential
  (c)	Jack-up point

17. TIE-DOWNS

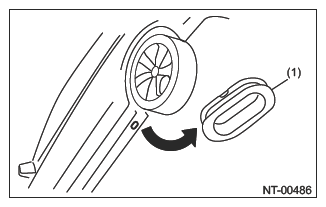

Tie-downs are used when transporting vehicles. Remove the grommet of the rear tie-down hole and install the tie-down only to the specified locations on the vehicle.

Courtesy of SUBARU OF AMERICA, INC.

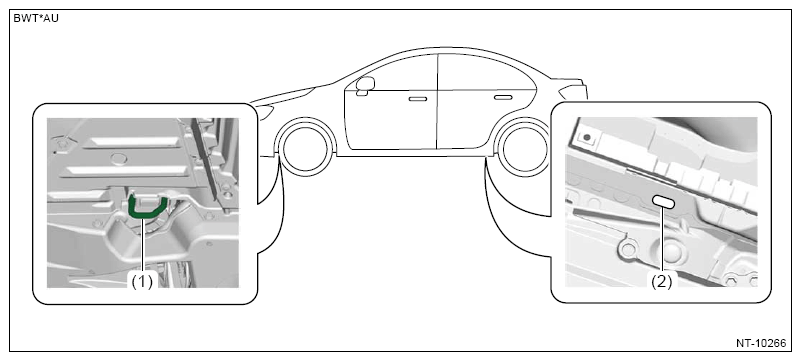

• TIE-DOWN LOCATION
  CAUTION: Make sure that the rear tie-down hole is firmly plugged with the grommet after the rear tie-down hole is used. Otherwise, dust, smell, etc. may come into the passenger compartment indirectly from the rear quarter, via the side sill from the rear tie-down hole.

  Courtesy of SUBARU OF AMERICA, INC.

  (1)	Front tie-down hook
  (2)	Rear tie-down hole

• CHAIN DIRECTION AT TIE-DOWN CONDITION

	Recommended
Tie-down direction	Courtesy of SUBARU OF AMERICA, INC.

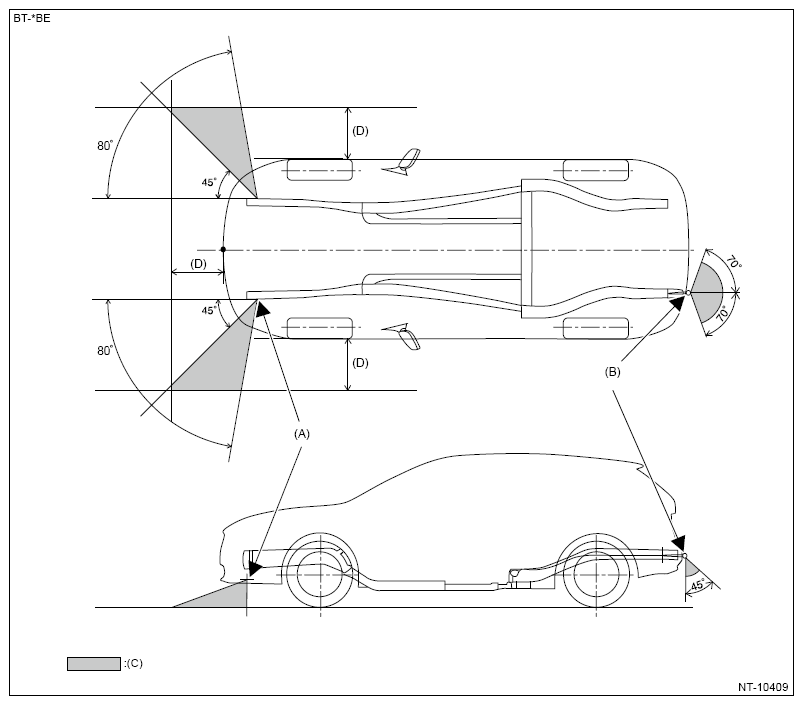

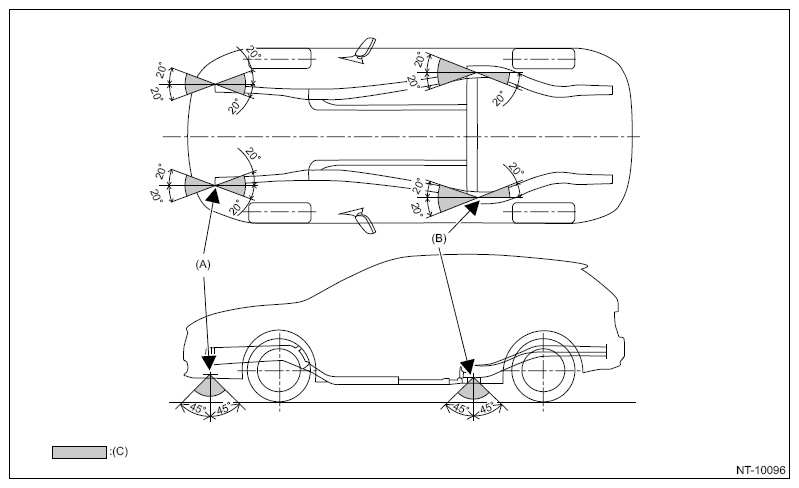

• TIE-DOWN RANGE

  For ground transportation

  • Tie-down at 4 locations
    CAUTION: When the vehicle is tied down toward the vehicle inside, hook the hooks on the rear tie-down holes from vehicle inside. When the vehicle is tied down toward the vehicle outside, hook the hooks from vehicle outside.

    Courtesy of SUBARU OF AMERICA, INC.

    (A)	Front tie-down hook
    (B)	Rear tie-down hole
    (C)	Chain pulling range at tie-down condition

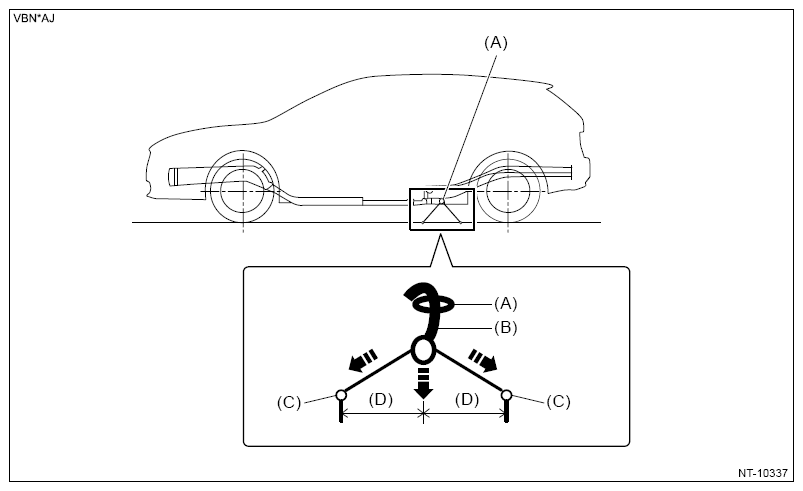

  • Tie-down at 2 locations
    CAUTION: Pull the tie-down hook rope evenly to the front and rear side. Do not hook the hooks outside the wheelbase to avoid up/down pitching.
    NOTE: The length (D) should be the same.

    Courtesy of SUBARU OF AMERICA, INC.

    (A)	Rear tie-down hole
    (B)	Tie-down hook
    (C)	Hook
    (D)	Rope length

    For sea transportation

    CAUTION: For front tie-down hook, use a hook for sea transportation.
    Hook on the front tie-down hook from vehicle outside, and tie down toward vehicle outside.
    Also, hook on the front tie-down hook and the towing hook (eyebolt) from top to bottom.
    The towing hooks (eyebolts) are exclusively used for towing and sea transportation tie-down, and do not use them for ground and freight transportation.

    Courtesy of SUBARU OF AMERICA, INC.

    (A)	Front tie-down hook
    (B)	Towing hook (eyebolt)
    (C)	Chain pulling range at tie-down condition
    (D)	300 mm (11.8 in)

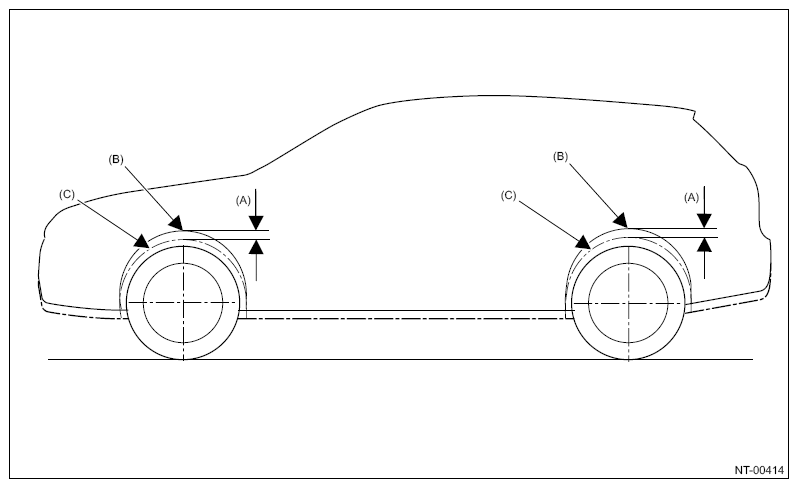

• VEHICLE SINKING VOLUME AT TIE-DOWN CONDITION
  CAUTION: The vehicle sinking volume at tie-down condition should be less than 50 mm (2 in) and make sure to fix the vehicle securely.
  Check to see if the tensions of chains or belts at tie-down condition are appropriate in the following procedures.

1. Before tie-down, measure the distance between the highest tire point and highest arch point at the center of wheel.
2. After tie-down, measure the distance between the highest tire point and highest arch point at the center of wheel.
3. If the distance (A) between the measured value of 1. and 2. above is less than 50 mm (2 in), it is judged as OK. If the distance is 50 mm (2 in) or more, it is judged as NG because the tension is too high.

   Courtesy of SUBARU OF AMERICA, INC.

   (A) Vehicle sinking volume at	tie-down condition
   (B)	Arch position before tie-down
   (C)	Arch position after tie-down

   NOTES FOR THE USE OF TIE-DOWN HOOK

   When the vehicle is tied down from vehicle inside, hook the hooks of tie-down chain from vehicle inside, and when the vehicle is tied down from vehicle outside, hook the hooks of tie-down chain from vehicle outside.

   For front tie-down hook, use S hook and J hook. For sea transportation, use a hook for sea transportation. For rear tie-down hole, use S hook, J hook, and T hook. T hook can be used only for rear tie-down hole.
