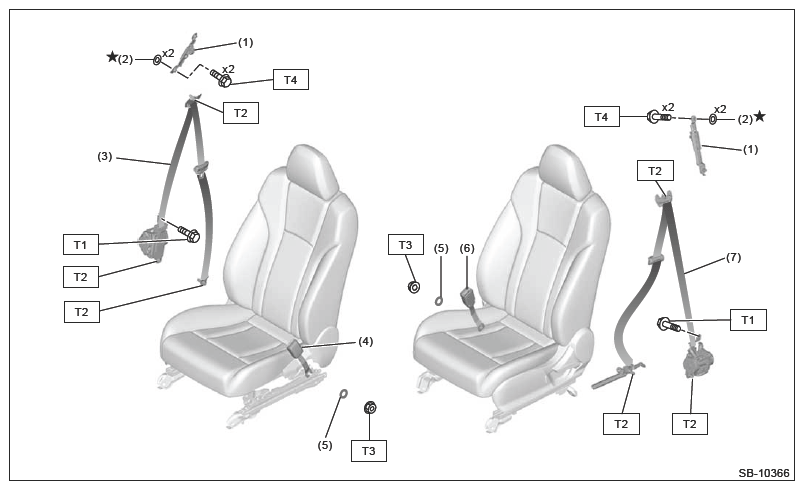

Front Seat Belt

Courtesy of SUBARU OF AMERICA, INC.

(1)

Adjuster shoulder anchor

(2)

Locking washer

(3)

Belt ASSY front OUT RH

(4)

Belt ASSY front INN RH⁽¹⁾

(5)

Spring wave washer

(6)

Belt ASSY front INN LH⁽¹⁾

(7)

Belt ASSY front OUT LH (only on driver's side with lap belt pretensioner)

⁽¹⁾	Apply grease when replacing the belt assembly front INN. Ref. to SEAT BELT SYSTEM>FRONT SEAT BELT>INSTALLATION>BELT ASSEMBLY FRONT INN .

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 30 (3.1, 22.1)

T3: 38 (3.9, 28.0)

T4: 53 (5.4, 39.1)
