Ball Joint: Removal

  1. Remove the front wheels. Ref. to WHEEL AND TIRE SYSTEM>TIRE AND WHEEL>REMOVAL .
  2. Remove the ball joint COMPL.
    CAUTION: Be careful not to damage the boot of the ball joint.

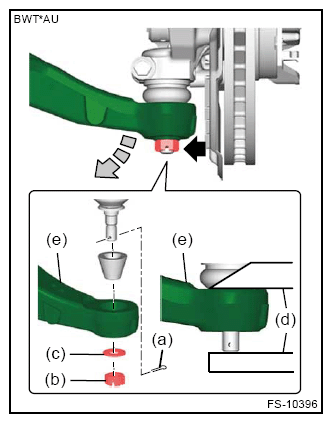

    1. Remove the cotter pin (a).
    2. Remove the castle nut (b) and washer (c).
    3. Use a ball joint puller (d) to detach the arm assembly front (e).
      G13620823Courtesy of SUBARU OF AMERICA, INC.

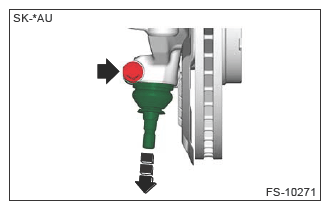

    4. Remove the bolt and pull out the ball joint COMPL.
    G13224960Courtesy of SUBARU OF AMERICA, INC.
