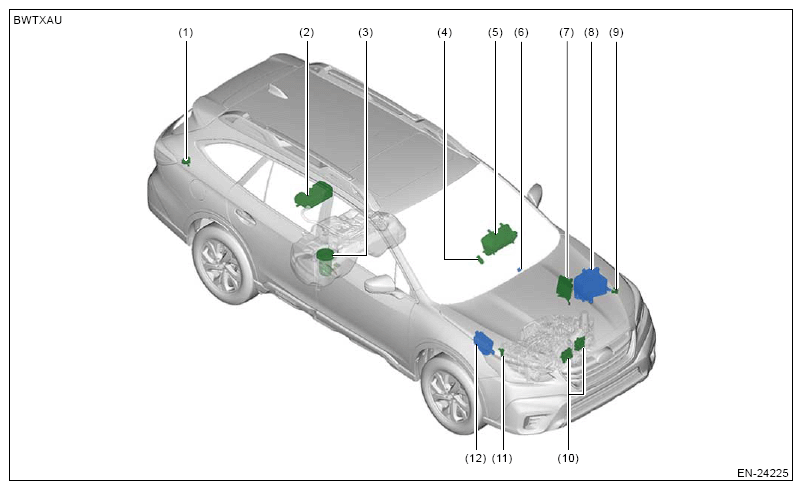

Engine Control System (2.4L) (Diagnostics) - Introduction: Electrical Component Location: Location: Body
| (1) | Fuel pump control module |
| (2) | Canister & leak check valve ASSY |
| (3) | Fuel pump |
| (4) | Push button ignition switch |
| (5) | Combination meter |
| (6) | Data link connector |
| (7) | Engine control module (ECM) |
| (8) | M/B |
| (9) | Battery sensor |
| (10) | Radiator fan control unit |
| (11) | Mass air flow and intake air temperature sensor |
| (12) | S/B |
