Components With Torque Specifications

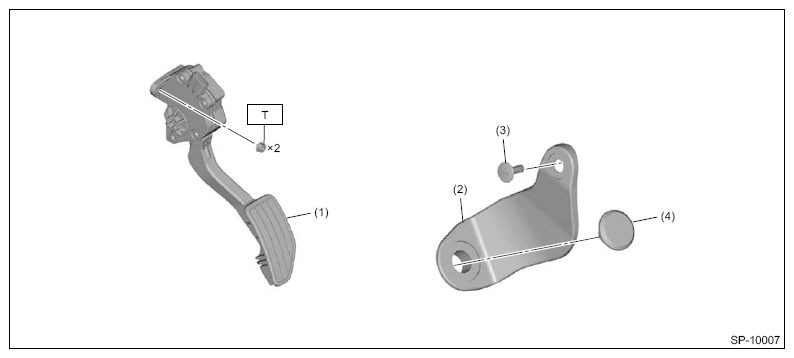

Fig 1: Accelerator Pedal Components Location
Courtesy of SUBARU OF AMERICA, INC.
(1)
Accelerator pedal ASSY
(2)
Accelerator plate
(3)
Clip
(4)
Accelerator stopper
Tightening torque: N.m (kgf-m, ft-lb)
T: 7.5 (0.8, 5.5)
Courtesy of SUBARU OF AMERICA, INC.
