Inspection Mode Ax
| DTC | Description & trouble part | Condition | Number of driving cycles on the detecting condition |
|---|---|---|---|
| P0851 | PARK/NEUTRAL SWITCH INPUT CIRCUIT LOW | MT model | 2 |
| P0852 | PARK/NEUTRAL SWITCH INPUT CIRCUIT HIGH | MT model | 2 |
WARNING:
When performing inspection mode AX on a public road, pay sufficient attention to the traffic condition and give the highest priority to safe driving.
NOTE:
Perform the inspection mode after warming up the engine except that the engine coolant temperature at engine start is specified.
- Check that the battery voltage is 12 V or more and fuel remains approx. half [20 - 40 L (5.3 - 10.6 US gal, 4.4 - 8.8 Imp gal)].
- Using the Subaru Select Monitor, perform the clear memory of [Engine]. Ref. to COMMON (DIAGNOSTICS)>CLEAR MEMORY .
- Drive according to the drive pattern described below.

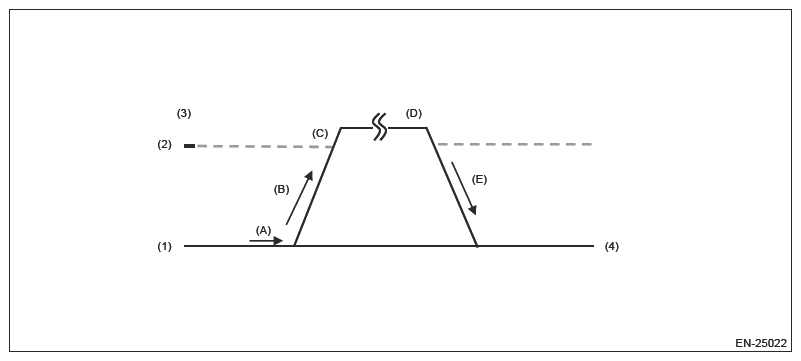

(1) 0 km/h (0 MPH) (2) 65 km/h (40 MPH) (3) Vehicle speed (4) Time (A) Idle the engine for five seconds or more. (B) Acceleration (Keep in the 5th gear position or higher with the vehicle speed up to 60 km/h (37.2 MPH) as a reference.) (C) Vehicle speed exceeds 65 km/h (40.4 MPH). (D) Driving time (There is no restriction for driving time.) (E) Deceleration (There is no specified deceleration method.) - Read the pending code using the Subaru Select Monitor or general scan tool. Ref. to COMMON (DIAGNOSTICS)>DIAGNOSTIC TROUBLE CODE (DTC) .
