Rear Seat Belt

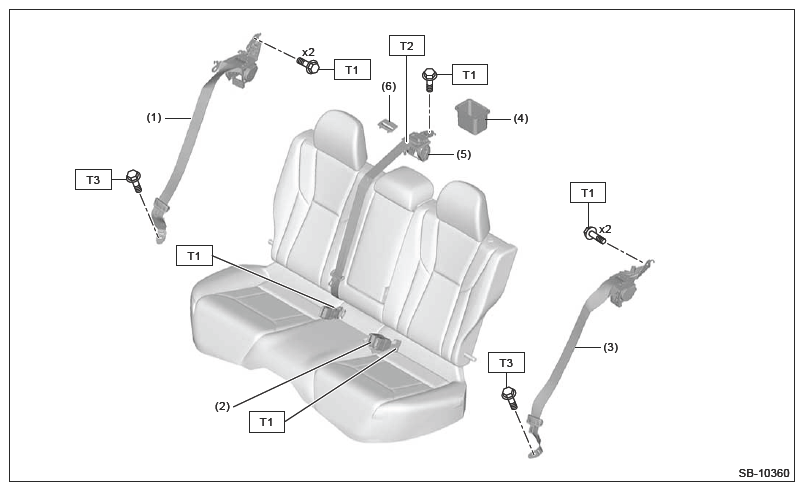

Fig 1: Rear Seat Belt Components Location

G16540622

Courtesy of SUBARU OF AMERICA, INC.

(1)	Belt ASSY rear OUT RH
(2)	Belt ASSY rear INN center LH
(3)	Belt ASSY rear OUT LH
(4)	Cover CTR ELR
(5)	Belt ASSY rear OUT CTR
(6)	Belt cover

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)

T3: . Ref. to SEAT BELT SYSTEM>REAR SEAT BELT>INSTALLATION>BELT ASSEMBLY REAR OUT RH AND LH .
