MT Gear Shift Lever: Inspection
- Check that there is no deformation, cracks or other damages.
- Check that there is no problem when shifting the MT gear shift lever from 1st to 6th.
- Check that the MT gear shift lever returns to the neutral position.
- Check that selecting to the reverse direction is disable unless the slider is pulled up.
- Check that selecting to the reverse direction is possible when the slider is pulled up to the full.
- Check that the slider returns to the initial position when the MT gear shift lever is returned to the neutral position with the slider pulled up to the full.
- Move the MT gear shift lever to the neutral position, and check the top surface of the shift knob for looseness in the lateral direction.
Specification:
1.5 mm (0.06 in) or less

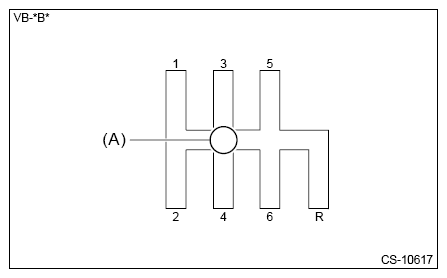

(A) Neutral position
