MT Gear Select Cable: Installation

CAUTION:

Always use new MT gear select cable if the cable is removed from selector lever COMPL of transmission side.
Do not bend the MT gear select cable more than necessary.
Do not twist the MT gear select cable more than necessary.

Install the select bracket.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Install the MT gear select cable.
CAUTION:
- Always use a new MT gear select cable.

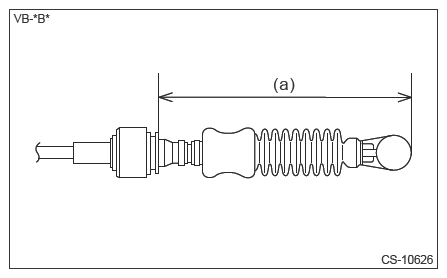

- Do not apply excessive load while holding the part (a).
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp.
CAUTION:
- Do not hit the MT gear select cable.
- If you hit the MT gear select cable by mistake, replace it with a new one.
Install the cable clamp.
Tightening torque:

18 N.m (1.8 kgf-m, 13.3 ft-lb)
Check the exposed length of MT gear select cable. Ref. to CONTROL SYSTEMS>MT GEAR SELECT CABLE>INSPECTION .
Install the transmission body. Ref. to MANUAL TRANSMISSION AND DIFFERENTIAL (TY75)>TRANSMISSION ASSEMBLY>INSTALLATION .
Check that the MT gear shift lever can be shifted into each position.
