Shift Lock Control System: Location

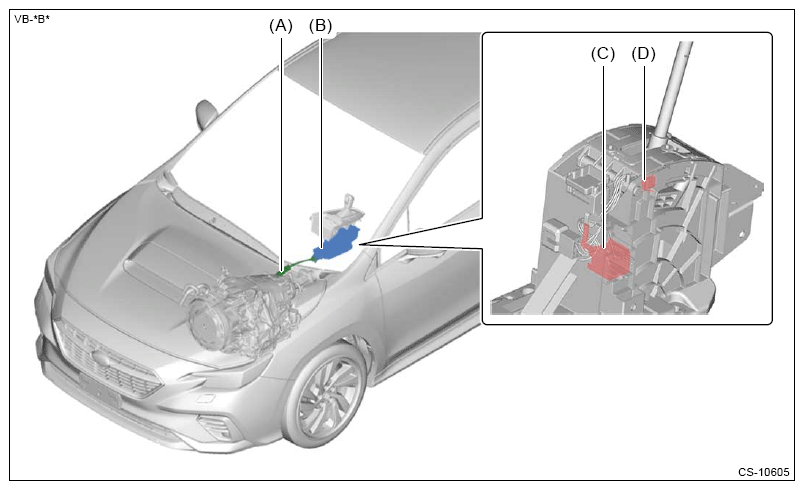

G16539207Courtesy of SUBARU OF AMERICA, INC.
(A) Select cable
(B) Select lever
(C) Shift lock solenoid
(D) "P range" switch
