Camera Control Module

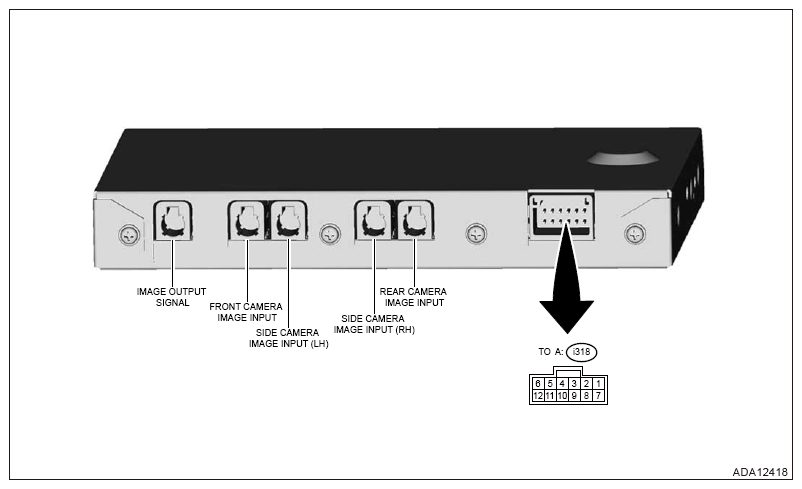

G16447012Courtesy of SUBARU OF AMERICA, INC.
Terminal No. Contents Measuring condition Standard
(i318) No. 1 - - -
(i318) No. 2 ←→ Chassis ground View button - OFF: 3.7 V
ON: 1.4 V or less
(i318) No. 3 - - -
(i318) No. 4 - -
(i318) No. 5 - -
(i318) No. 6 ←→ Chassis ground (H)_Advanced safety CAN L Ignition switch ON 2.5 V
(i318) No. 7 ←→ Chassis ground Ignition power supply Ignition switch ON 8 - 16 V
(i318) No. 8 ←→ Chassis ground GND Always Continuity to chassis ground
(i318) No. 9 - - -
(i318) No. 10 - - -
(i318) No. 11 - - -
(i318) No. 12 ←→ Chassis ground (H)_Advanced safety CAN H Ignition switch ON 2.5 V
