MULTIVIEW Control Module

  1. When replacing the multiview control assembly, store the [Front&Side Camera/Multi View Monitor] customizing information. Ref. to COMMON (DIAGNOSTICS)>CUSTOMIZE>OPERATION > SAVE SETTINGS / READ SETTINGS
  2. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  3. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  4. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  5. Remove the multiview control assembly.

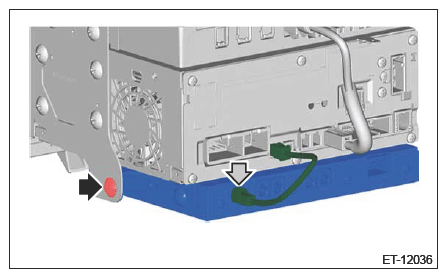

    1. Disconnect the cable CCM connector.
    2. Remove the screws to remove the multiview control assembly.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.
G16441535Courtesy of SUBARU OF AMERICA, INC.
