Data Communication Module

  1. Install the backup battery.ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>INSTALLATION > BACKUP BATTERY
  2. Install the data communication module.
    CAUTION: Never install a data communication module from another vehicle. It may disable recognition of vehicle information and cause communication error.

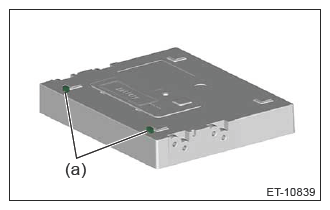

    NOTE: Align the positioning pin (a) of the data communication module with the positioning hole of the cockpit control module.
    G13201891Courtesy of SUBARU OF AMERICA, INC.
  3. Install the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>INSTALLATION .
  4. Install the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>INSTALLATION>CENTER GRILLE ASSEMBLY .
  5. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  6. Perform the registration if the data communication module is replaced with a new part. Ref. to ENTERTAINMENT & MONITORING>TELEMATICS SYSTEM>OPERATION .
  7. Check the LED illumination status of the telematics button. Ref. to TELEMATICS SYSTEM (DIAGNOSTICS)>CHECK LIST FOR INTERVIEW>CHECK>LED ILLUMINATION STATUS LIST .
