Data Communication Module

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the grille ventilation assembly center. Ref. to AIR CONDITIONER>AIR VENT GRILLE>REMOVAL>CENTER GRILLE ASSEMBLY .
  3. Remove the center information display assembly. Ref. to ENTERTAINMENT & MONITORING>COCKPIT DISPLAY>REMOVAL .
  4. Remove the data communication module.
    1. Disconnect the data communication module cord.
    2. Remove the screws and remove the data communication module.
      CAUTION: Do not drop or apply any impact to the data communication module.
      NOTE: Remove the screws on LH side in the same procedure as on the RH side.

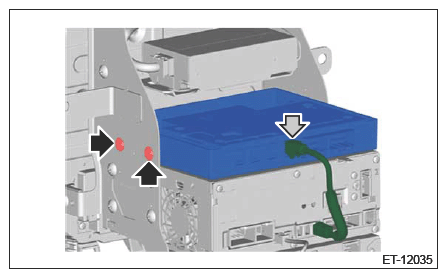

      G16441523Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the backup battery.ENTERTAINMENT & MONITORING>DATA COMMUNICATION MODULE>REMOVAL > BACKUP BATTERY
      NOTE: Perform this procedure only when required.
