Engine Coolant Temperature Sensor: Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Drain engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
  3. Remove the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>REMOVAL .

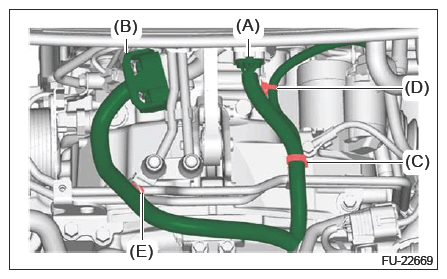

  4. Disconnect the connector (A) and connector (B), and remove the clip (C), clip (D) and clip (E).
    G16438534Courtesy of SUBARU OF AMERICA, INC.

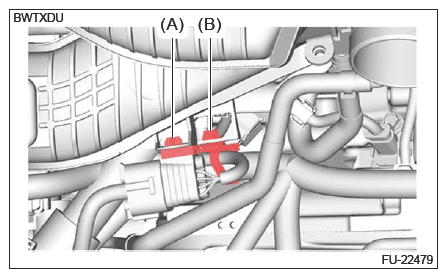

  5. Remove the connector (A) and the clip (B).
    G16384102Courtesy of SUBARU OF AMERICA, INC.

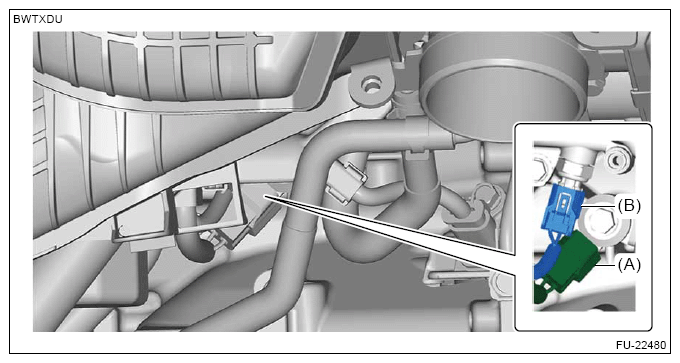

  6. Disconnect the connector (A) from the knock sensor, and disconnect the connector (B) from the engine coolant temperature sensor.
    G16384103Courtesy of SUBARU OF AMERICA, INC.

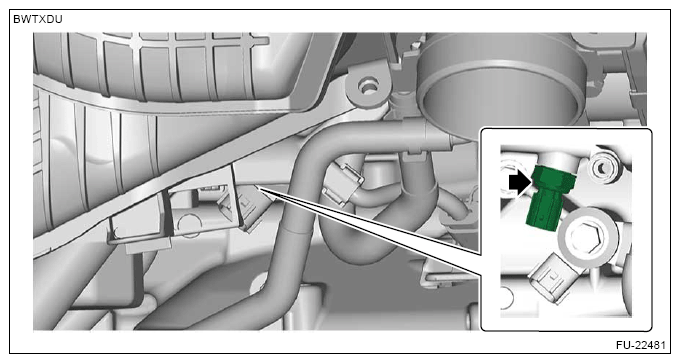

  7. Remove the engine coolant temperature sensor.
    G16384104Courtesy of SUBARU OF AMERICA, INC.
