Fuel Tank 2

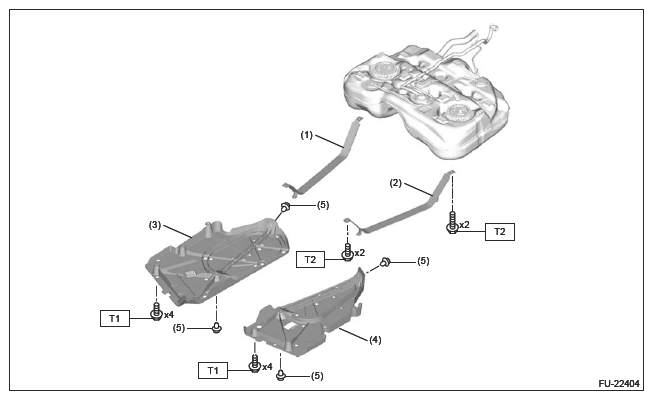

Fig 1: Fuel Tank 2 Components Location
G16438402Courtesy of SUBARU OF AMERICA, INC.
(1) Fuel tank band RH
(2) Fuel tank band LH
(3) Fuel tank protector RH
(4) Fuel tank protector LH
(5) Clip

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2:  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DOTC)>INSTALLATION .
