Throttle Body: Installation

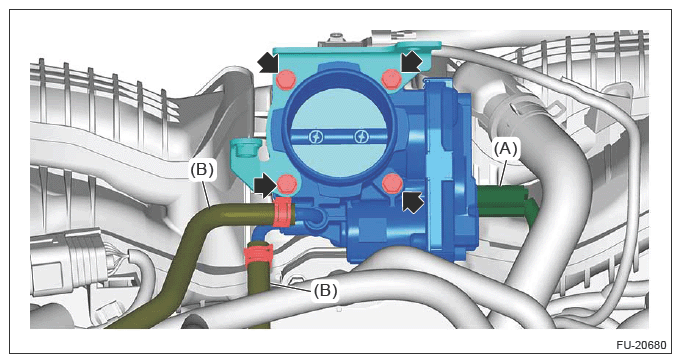

  1. Set a new gasket, and install the throttle body together with the throttle body stay.

    Tightening torque:

    8 N.m (0.8 kgf-m, 5.9 ft-lb)

  2. Connect the preheater hose (B).
  3. Connect the connector (A).
    G13198162Courtesy of SUBARU OF AMERICA, INC.
  4. Install the intercooler. Ref. to INTAKE (INDUCTION) (H4DOTC)>INTERCOOLER>INSTALLATION .
  5. Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  6. Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
