Components With Torque Specifications

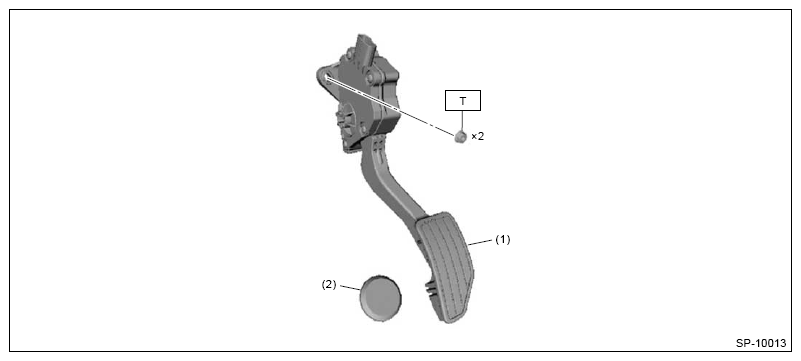

Fig 1: Speed Control Systems Components Location

Courtesy of SUBARU OF AMERICA, INC.

(1)	Accelerator pedal ASSY
(2)	Accelerator stopper

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
