Brake Test

Keep the front or rear wheels on the ground during measurement.

Courtesy of SUBARU OF AMERICA, INC.

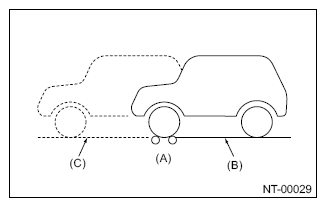

(A)	Brake tester
(B)	Position for measuring front wheel
(C)	Position for measuring rear wheel

When the brake dragging force is large

Check the dragging of brake pad.

Judgment standards:

	Braking force
Rear wheel total	10% or more of load on front or rear wheels
Difference between right and left wheels	8% or less of load on front or rear wheels
Grand total	50% or more of vehicle weight at the time of test

When measurement is difficult to carry out because both of front wheels are locked, brake force measurement in this condition conforms to standard grand total.
