RH Side

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake duct. Ref. to INTAKE (INDUCTION) (H4DOTC)>AIR INTAKE DUCT>REMOVAL .

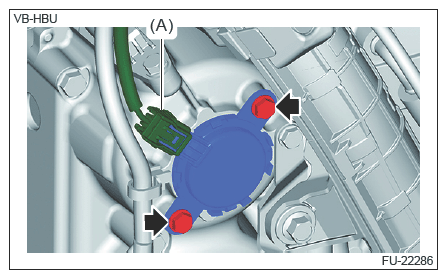

  3. Disconnect the connector (A) and remove the oil control solenoid.
    G14601024Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the O-ring and back-up ring from the oil control solenoid.
