Control Valve Body: Removal

NOTE: The control valve body is a non-disassembly part.

Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Remove the oil pan and oil strainer. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PAN>REMOVAL .

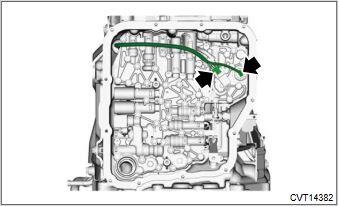

Disconnect the connector.

Courtesy of SUBARU OF AMERICA, INC.

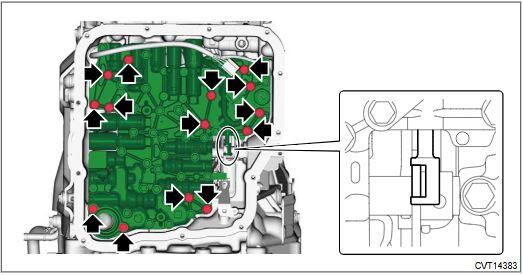

Remove the control valve body.
CAUTION:
- Do not remove any bolts other than specified in the figure.
- Be careful not to let the manual valve drop off.
Courtesy of SUBARU OF AMERICA, INC.
Remove the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.
NOTE: It may remain in the transmission case side.

Courtesy of SUBARU OF AMERICA, INC.
Remove the O-rings from the pressure pipe No. 1, pressure pipe No. 2 and pressure pipe No. 3.

Courtesy of SUBARU OF AMERICA, INC.
Remove the filter from the transmission case.
NOTE: Perform this procedure only when required.

Courtesy of SUBARU OF AMERICA, INC.
