Converter Case Cover: Removal

  1. Remove the drive pinion. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>DRIVE PINION>REMOVAL .
  2. Remove the primary speed sensor. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PRIMARY SPEED SENSOR>REMOVAL .
  3. Remove the oil stopper plate (A) and lubrication pipe (B).
    G13622342Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the oil pump chain cover and the oil pump chain. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>OIL PUMP CHAIN>REMOVAL .
  5. Remove the bolts securing the converter case cover.
    G13200347Courtesy of SUBARU OF AMERICA, INC.

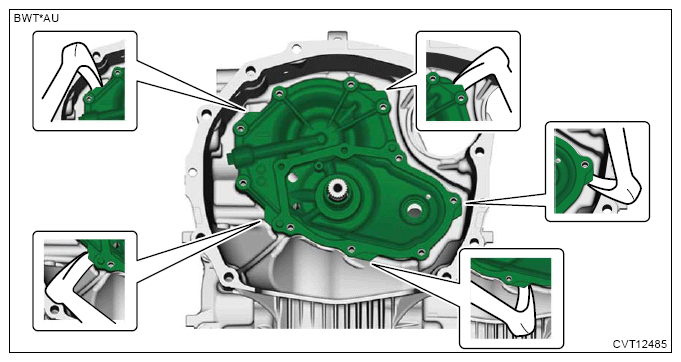

  6. Using a crowbar wrapped with protection tape or similar, expand the clearance and remove the converter case cover.
    G13622344Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the O-rings.
    G13622345Courtesy of SUBARU OF AMERICA, INC.

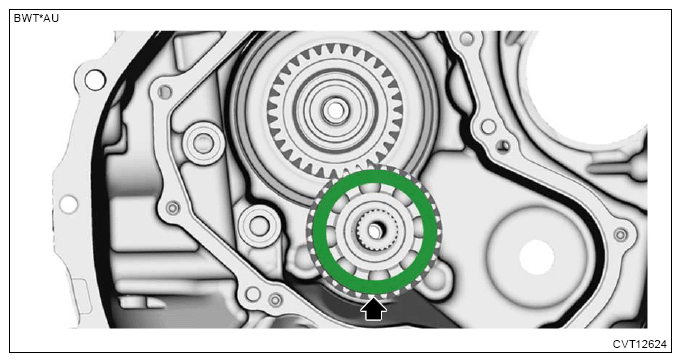

  8. Remove the front reduction drive gear shim.
    NOTE: The front reduction drive gear shim may remain on the converter case side.
    G13622346Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the front reduction driven gear shim (front side).

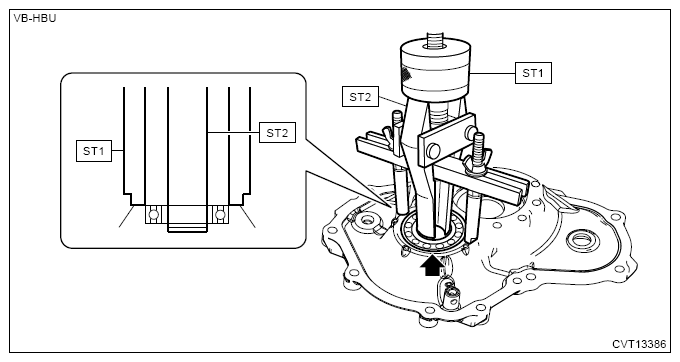

    1. Remove the ball bearing using the ST1 and ST2.

      Preparation tool:

      ST1: PULLER ASSY (398527700)

      ST2: CLAW (18760AA000)

      G14611518Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the front reduction driven gear shim (front side).
    G13622348Courtesy of SUBARU OF AMERICA, INC.
  10. Remove the seal rings.
    G13622349Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the liquid gasket from the converter case and converter case cover.
