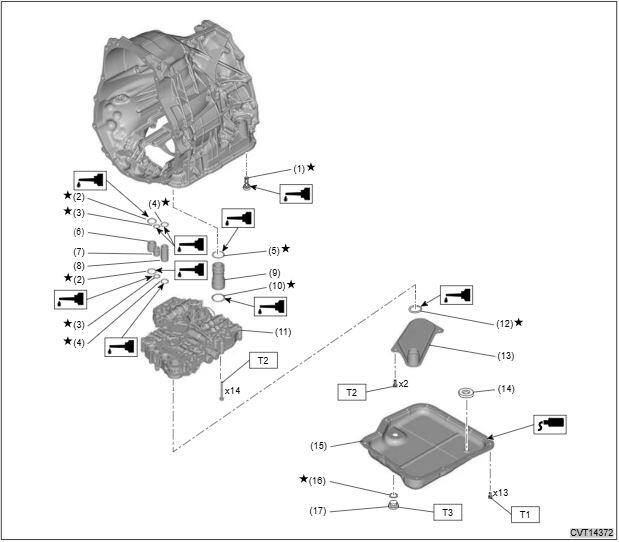

Control Valve Body
| (1) | Filter |
| (2) | O-ring |
| (3) | O-ring |
| (4) | O-ring |
| (5) | O-ring |
| (6) | Pressure pipe No. 1 |
| (7) | Pressure pipe No. 2 |
| (8) | Pressure pipe No. 3 |
| (9) | CVTF pipe |
| (10) | O-ring |
| (11) | Control valve body |
| (12) | O-ring |
| (13) | Oil strainer |
| (14) | Magnet |
| (15) | Oil pan |
| (16) | Gasket |
| (17) | Drain plug |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.2 (0.7, 5.3)
T2: 9 (0.9, 6.6)
T3: 39.2 (4.0, 28.9)
