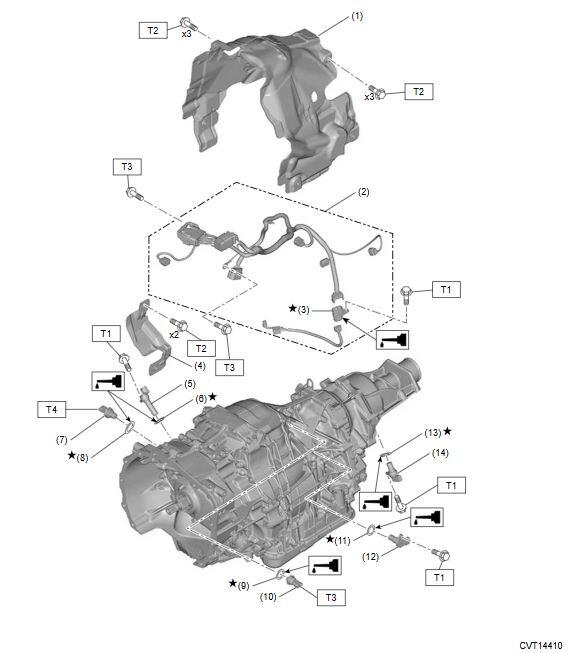

Transmission Harness And Sensor
| (1) | Transmission case cover (rear) |
| (2) | Transmission harness |
| (3) | Connector |
| (4) | Transmission case cover (front) |
| (5) | Primary speed sensor |
| (6) | O-ring |
| (7) | Secondary pressure sensor |
| (8) | O-ring |
| (9) | O-ring |
| (10) | Primary pressure sensor |
| (11) | O-ring |
| (12) | Secondary speed sensor |
| (13) | O-ring |
| (14) | Front wheel speed sensor |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7 (0.7, 5.2)
T2: 8 (0.8, 5.9)
T3: 13 (1.3, 9.6)
T4: 39 (4.0, 28.8)
