Primary Pressure Sensor: Removal

CAUTION: If water or oil contacts the connector terminal of primary pressure sensor, replace it with a new part.

Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL
Disconnect the connector, and remove the primary pressure sensor.
CAUTION: Prepare the container for draining of CVTF.

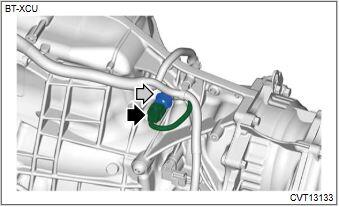

Courtesy of SUBARU OF AMERICA, INC.

(A) Primary pressure sensor
Remove the O-ring from the primary pressure sensor.
