Transfer Clutch: Installation

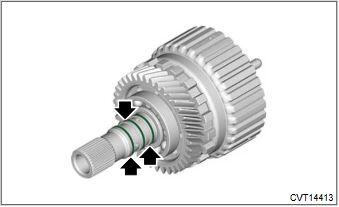

Install a new seal ring.
NOTE:
- Apply CVTF to the seal rings.
- Do not stretch the seal ring more than necessary.
Courtesy of SUBARU OF AMERICA, INC.
Install the reduction drive gear shaft.

Courtesy of SUBARU OF AMERICA, INC.
Install the return spring (A), parking pawl (B) and shaft (C).
NOTE:
- Make sure that the end (a) of return spring contacts the rib.
- Make sure that the end (b) of return spring is sticking out of the parking pawl.
Courtesy of SUBARU OF AMERICA, INC.
Install the rear drive shaft. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>REAR DRIVE SHAFT>INSTALLATION .
