Transfer Clutch: Removal

  1. Remove the parking pawl. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>PARKING PAWL>REMOVAL .
  2. Remove the rear drive shaft.
    G13622083Courtesy of SUBARU OF AMERICA, INC.

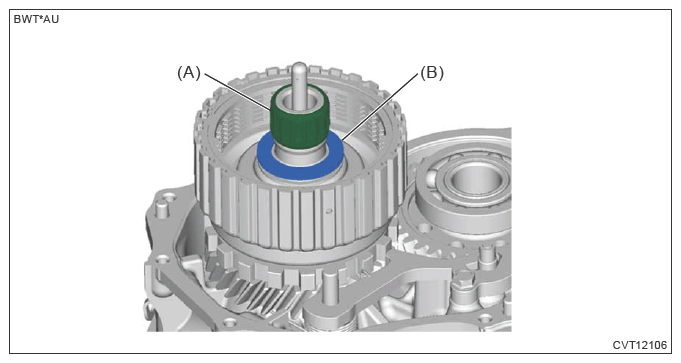

  3. Remove the needle bearing (A) and thrust bearing (B).
    G13622084Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the reduction drive gear shaft.
    G13622094Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the seal rings.
    G00679070Courtesy of SUBARU OF AMERICA, INC.
