Transmission Harness: Installation

Install the transmission harness to the transmission case.

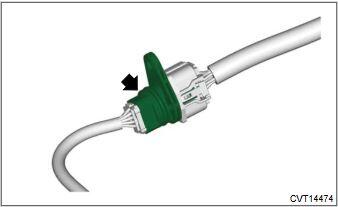

Install a new connector to the transmission harness.

Courtesy of SUBARU OF AMERICA, INC.

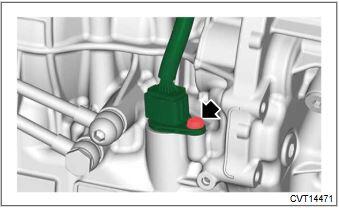

Set the transmission harness to the transmission case.
NOTE: Apply CVTF to the O-rings.

Install the bolt which holds the transmission harness.

Tightening torque:

7 N.m (0.7kgf-m, 5.2ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Install the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>INSTALLATION .
Remove the ST (STAND ASSY).

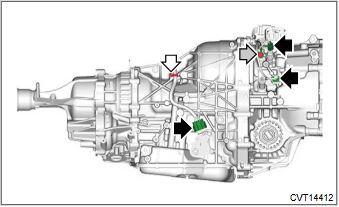

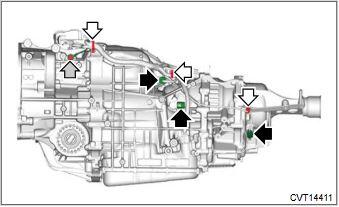

Connect the connector and ground terminal as shown in the figure, and install each clip.
Tightening torque:

13 N.m (1.3kgf-m, 9.6ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.
Install the ground terminal and the stay.
Tightening torque:

16 N.m (1.6kgf-m, 11.8ft-lb)
Install the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>INSTALLATION .
Install the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>INSTALLATION .
