Transmission Harness: Removal

  1. Remove the transmission body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TRANSMISSION ASSEMBLY>REMOVAL .
  2. Remove the torque converter. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>TORQUE CONVERTER>REMOVAL .

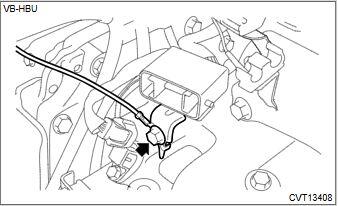

  3. Remove the ground terminal and the stay.
    G00679055Courtesy of SUBARU OF AMERICA, INC.
    G14611131Courtesy of SUBARU OF AMERICA, INC.
  4. Disconnect the connector and ground terminal as shown in the figure, and release the clips.
    G00679056Courtesy of SUBARU OF AMERICA, INC.
    G00679057Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the transmission harness from the transmission case.
    1. Attach the ST.
      NOTE: When attaching the ST to the (a) positions, spacers or similar of 2.0mm (0.08in) or more in thickness are necessary.

      Preparation tool:

      ST: STAND ASSY (18632AA000)

      G13225799Courtesy of SUBARU OF AMERICA, INC.
    2. Place the transmission body.
      CAUTION: Prepare a container for draining of CVTF, because CVTF remaining inside the transmission body may flow out from the input shaft portion.
    3. Remove the control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>CONTROL VALVE BODY>REMOVAL .
    4. Remove the bolt securing the transmission harness.
      G00679058Courtesy of SUBARU OF AMERICA, INC.
    5. Remove the transmission harness from the transmission case.
    6. Remove the connector from the transmission harness.
      G00679059Courtesy of SUBARU OF AMERICA, INC.
