Fuel Level Sensor: Inspection
- Check that the fuel level sensor has no damage.
- Measure the fuel level sensor float position.NOTE: When inspecting the fuel level sensor, perform the work with the sensor installed to the fuel pump.

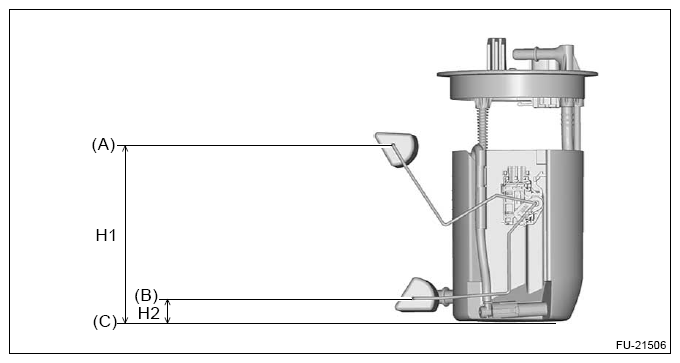

(A) FULL (B) EMPTY (C) Fuel tank seating surface Float position Standard FULL - Fuel tank seating surface H1 152.8±3.5 mm (6.016±0.138 in) EMPTY - Fuel tank seating surface H2 21.1±3.5 mm (0.831±0.138 in) - Check the resistance between fuel level sensor terminals by the connector on top of the fuel pump.
Float position Terminal No. Standard FULL (A) 1 and 4 8.7±1.0 Ω EMPTY (B) 190.3±2.0 Ω
