Outlet Engine Coolant Temperature Sensor: Notes
- Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
- Drain engine coolant. Ref. to COOLING (H4DO)>ENGINE COOLANT>REPLACEMENT>DRAINING OF ENGINE COOLANT .
- Remove the generator. Ref. to STARTING/CHARGING SYSTEMS (H4DO)>GENERATOR>REMOVAL .

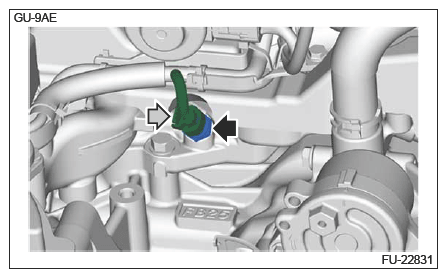

- Disconnect the connector and remove the outlet engine coolant temperature sensor.
