2.0 L Model

NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL PIPE 2 .
  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
  2. Remove the air intake boot.
    1. Remove the clip.
    2. Loosen the clamp.
      G16760376Courtesy of SUBARU OF AMERICA, INC.
    3. Remove the air intake boot, and place it aside so that it does not interfere with the work.
      CAUTION: Be careful not to pull out the PCV hose.
    G16760377Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>REMOVAL>2.0 L MODEL .
  4. Remove the clip securing the engine wiring harness.

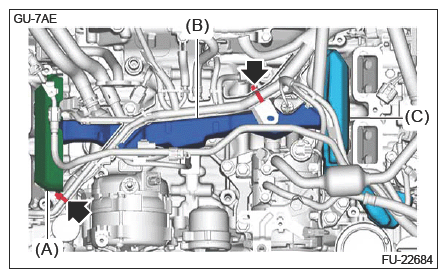

  5. Remove the fuel pipe insulator.
    G16760456Courtesy of SUBARU OF AMERICA, INC.
    (A)  Fuel pipe insulator No. 1
    (B)  Fuel pipe insulator No. 2
    (C)  Fuel pipe insulator No. 3
