RH Side

Connect the coupling harness and install the knock sensor.
NOTE:

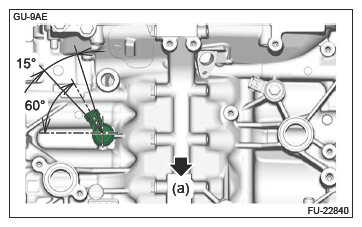

- Knock sensor must be positioned so that the connector center comes within the range shown in the figure .
- Make sure that the knock sensor and its connector do not touch the adjacent parts .
Tightening torque :

24 N.m (2.4 kgf-m, 17.7 ft-lb)

Courtesy of SUBARU OF AMERICA, INC.

(a) Front of engine

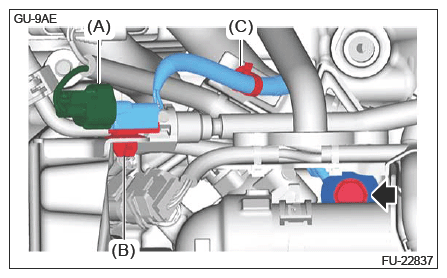

Install the clip (C) to the harness case.
Connect the connector (A) and install the clip (B).

Courtesy of SUBARU OF AMERICA, INC.

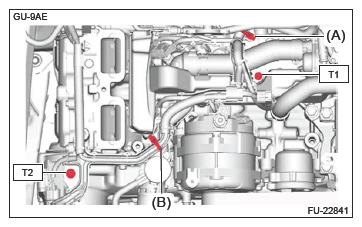

Secure the engine wiring harness with the bolts.
Tightening torque :

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T2: 19 N.m (1.9 kgf-m, 14.0 ft-lb)
Secure the engine wiring harness with the clip (A) and clip (B).

Fig 1: Engine Wiring Harness Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold assembly. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>INTAKE MANIFOLD ASSEMBLY>INSTALLATION>2.5 L MODEL .
Install the air intake boot. Ref. to INTAKE (INDUCTION) (H4DO)>AIR INTAKE BOOT>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
