Engine Control Module (ECM): Removal

  1. Disconnect the ground terminal from battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .

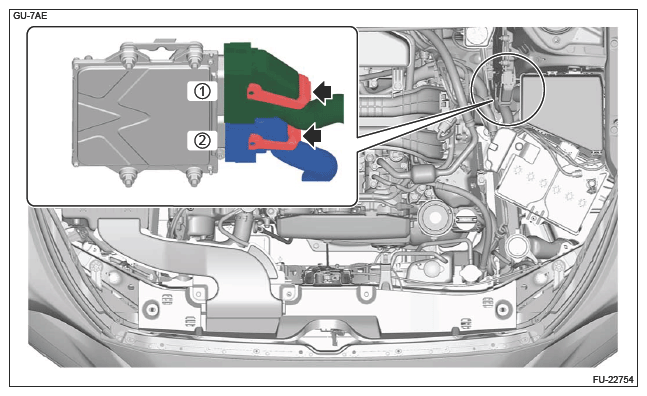

  2. Disconnect the connector in numerical order as shown in the figure.
    CAUTION: Make sure that the lock is released before moving the lever in order to avoid damaging the connector.

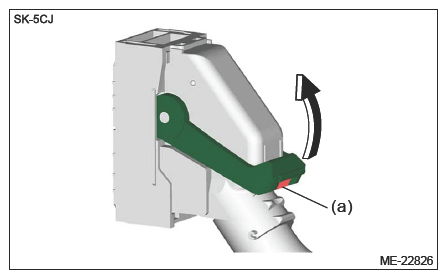

    NOTE: To disconnect the connector, press the portion (a) shown in the figure to release the lock and move the lever in the direction of arrow.
    G16523377Courtesy of SUBARU OF AMERICA, INC.
    G16760622Courtesy of SUBARU OF AMERICA, INC.

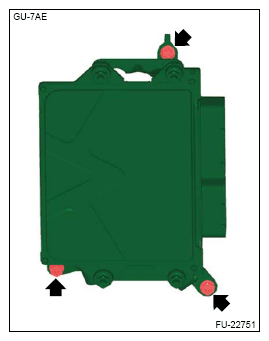

  3. Remove the ECM.
    G16760623Courtesy of SUBARU OF AMERICA, INC.

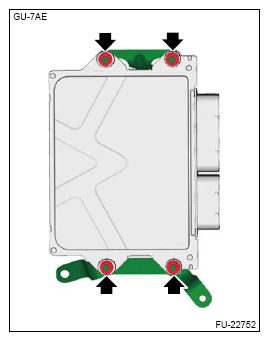

  4. Remove the ECM bracket.
    NOTE: Perform this procedure only when required.
    G16760624Courtesy of SUBARU OF AMERICA, INC.
