Fuel Sub Level Sensor Side

NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL SUB LEVEL SENSOR .
  1. Remove the fuel sub level sensor. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL SUB LEVEL SENSOR>REMOVAL .
  2. Remove the fuel sub level sensor from the fuel sub level sensor case.

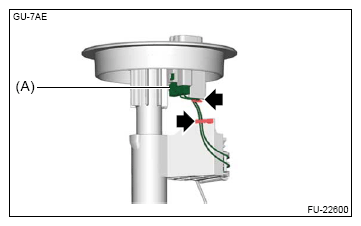

    1. Disconnect the connector (A).
    2. Pull out the fuel sub level sensor harness from the clip.
      G16760724Courtesy of SUBARU OF AMERICA, INC.

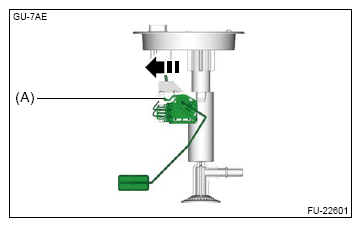

    3. Press the claw (A) of the fuel sub level sensor to unlock.
    4. Slide the fuel sub level sensor in the direction of the arrow, and remove the fuel sub level sensor.
      G16760725Courtesy of SUBARU OF AMERICA, INC.
