Fuel Tank Protector: Removal

NOTE: Components: Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>GENERAL DESCRIPTION>COMPONENT>FUEL TANK 2 .
  1. Lift up the vehicle.
  2. Remove the fuel tank protector.
    1. Remove the bolt and clip (A).
    2. Remove the fuel tank protector.

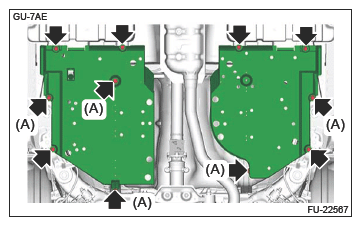

      • [VIN:] JF1############## [model and] JF2############## [model]
        G16760634Courtesy of SUBARU OF AMERICA, INC.

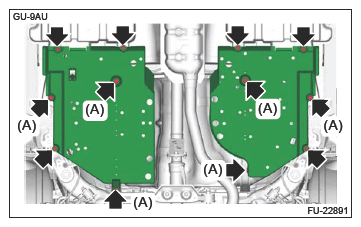

      • [VIN:] 4S4############## [model]
        G16760635Courtesy of SUBARU OF AMERICA, INC.
