Fuel Tank 2

• [VIN:] JF1############## [model and] JF2############## [model]

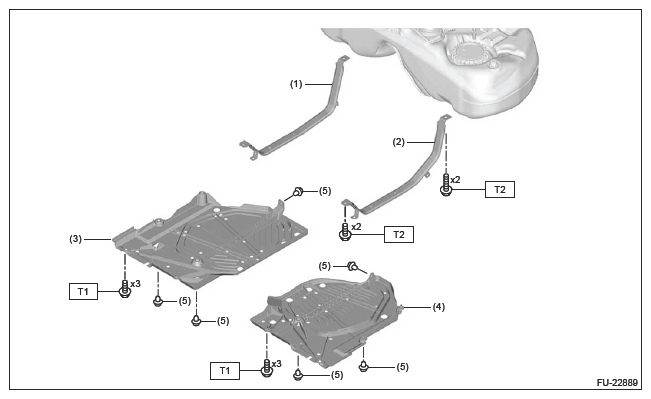

Fig 1: Fuel Tank 2 Components Location (JF1 And JF2 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>INSTALLATION .

• [VIN:] 4S4############## [model]

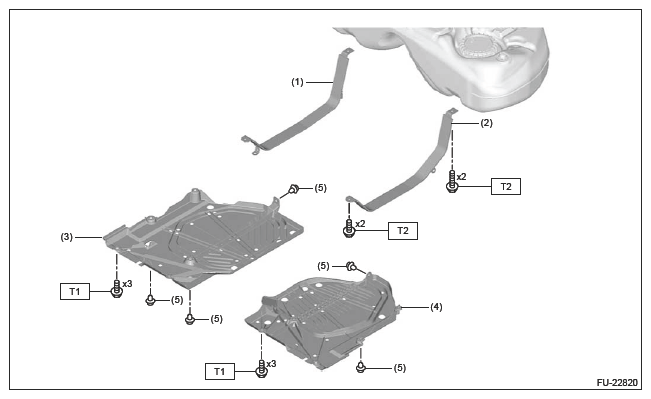

Fig 2: Fuel Tank 2 Components Location (4S4 Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 18 (1.8, 13.3)

T2  Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO)>FUEL TANK>INSTALLATION .
