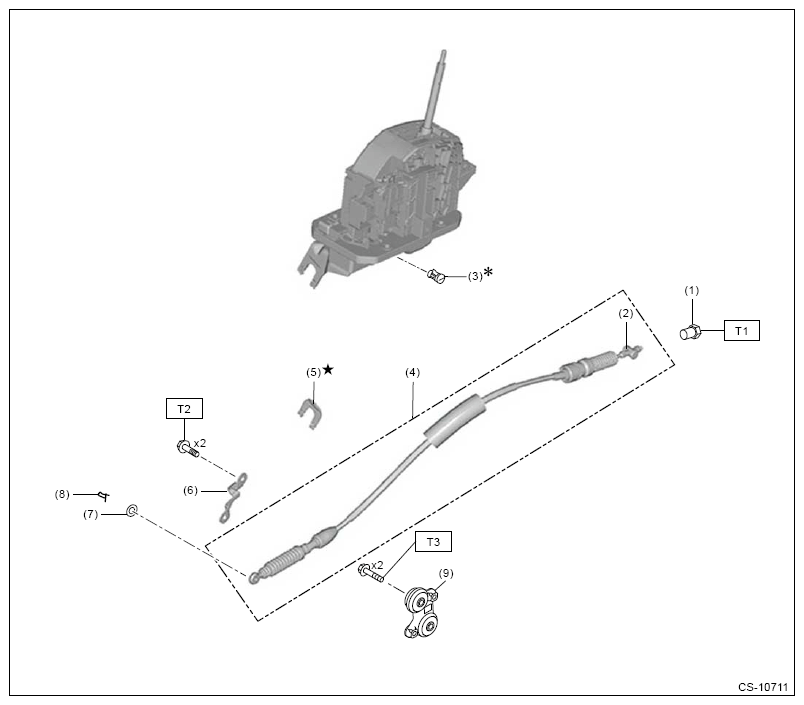

Select Cable
| (1) | Adjusting nut (rear) |
| (2) | Adjusting nut (front) |
| (3) | Connector pin |
| (4) | Select cable |
| (5) | Clamp |
| (6) | Cable bracket |
| (7) | Washer |
| (8) | Snap pin |
| (9) | Cable plate |
Tightening torque: N.m (kgf-m, ft-lb)
T1: 7.5 (0.8, 5.5)
T2: 18 (1.8, 13.3)
T3: 25 (2.5, 18.4)
*: When removing from the select lever, replace it with a new part .
