Select Cable: Installation

CAUTION:
  • Check that the protector (b) is set between the clamps (a).
  • If the protector (b) is offset, set it between the clamps (a).
G13935596Courtesy of SUBARU OF AMERICA, INC.

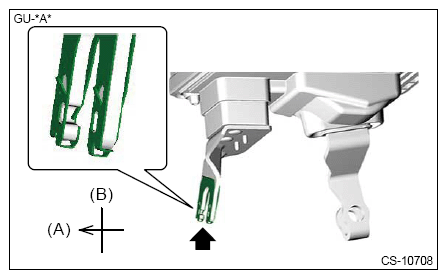

  1. Set a new clamp on the select lever as shown in the figure.
    G16767447Courtesy of SUBARU OF AMERICA, INC.
    (A) Front side
    (B) Upside
  2. Install the select cable to the select lever. (If the connector pin is not removed)
    CAUTION:
    • Install the cable so that it does not twist.
    • Check that the select lever is in "N range".
    • If the connector pin is removed, always replace with a new connector pin.
    • Do not apply excessive load while holding the part (a).
    G14602404Courtesy of SUBARU OF AMERICA, INC.
    1. Insert the select cable to the connector pin.
    2. Secure the select cable to the clamp.
      G14602410Courtesy of SUBARU OF AMERICA, INC.
  3. Install the select cable to the select lever. (If the connector pin is removed)
    CAUTION:
    • Install the cable so that it does not twist.
    • Check that the select lever is in "N range".
    • Do not apply excessive load while holding the part (a).
    G14602404Courtesy of SUBARU OF AMERICA, INC.
    1. Secure the select cable to the clamp.

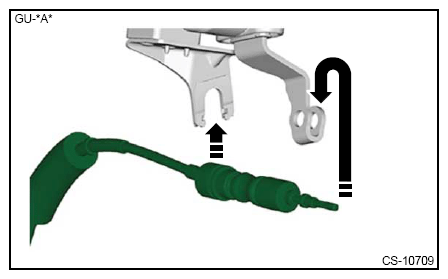

    2. Align the cable thread with the select lever arm.
      G16767451Courtesy of SUBARU OF AMERICA, INC.

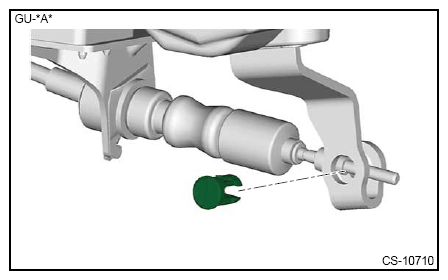

    3. Install a new connector pin.
      G16767452Courtesy of SUBARU OF AMERICA, INC.
  4. Temporarily Install the adjusting nut (rear) to the select cable.

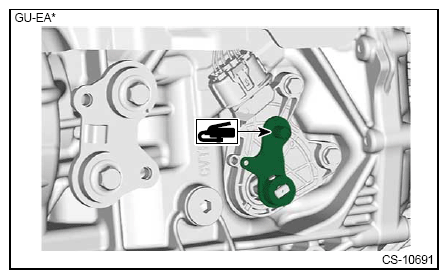

  5. Apply grease to the shifter arm.

    Preparation items  :

    Grease (VIN:] JF1############## [model and] JF2############## [model)

    IDEMITSU APOLLOIL AUTOLEX A, NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

    Grease (VIN:] 4S4############## [model)

    Shell Gadus S2 V220, NIPPON GREASE NIGTIGHT LTS No. 2 or equivalent

    G16767453Courtesy of SUBARU OF AMERICA, INC.

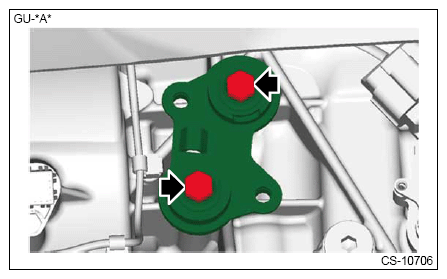

  6. Install the cable plate.

    Tightening torque:

    25 N.m (2.5 kgf-m, 18.4 ft-lb)

    G16767441Courtesy of SUBARU OF AMERICA, INC.

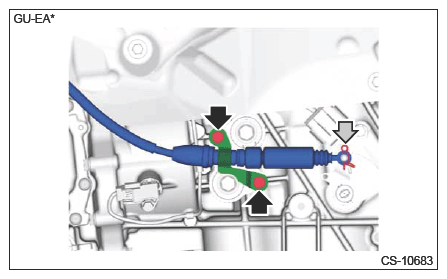

  7. Connect the select cable to the transmission main body.
    CAUTION: Do not apply excessive load while holding the part (a).
    G14602401Courtesy of SUBARU OF AMERICA, INC.
    NOTE: Set the washer before installing the snap pin.

    Tightening torque:

    18 N.m (1.8 kgf-m, 13.3 ft-lb)

    G16767440Courtesy of SUBARU OF AMERICA, INC.
  8. Adjust the select cable free play. Ref. to CONTROL SYSTEMS>SELECT CABLE>ADJUSTMENT .
  9. Install the center exhaust cover. Ref. to EXHAUST (H4DO)>REAR EXHAUST PIPE .
  10. Release the shift lock and shift the select lever to the "P range". Ref. to CONTROL SYSTEMS>SELECT LEVER>INSTALLATION .
